Choose by water source

Well or open water?

The installation determines the pump family. A motor wattage or maximum flow figure alone cannot confirm the right model.

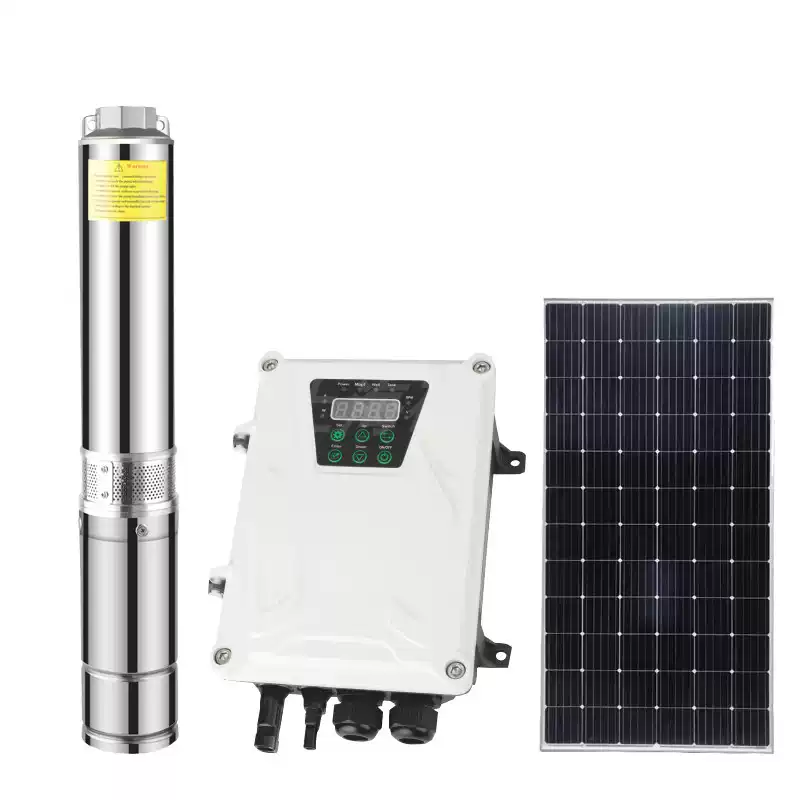

01 · Borehole / deep well

Solar submersible pump

The pump sits below the pumping water level. Share the well diameter, static and pumping water levels, daily water requirement, outlet elevation and pipe run.

Read the borehole sizing guide →Explore deep-well pumps →

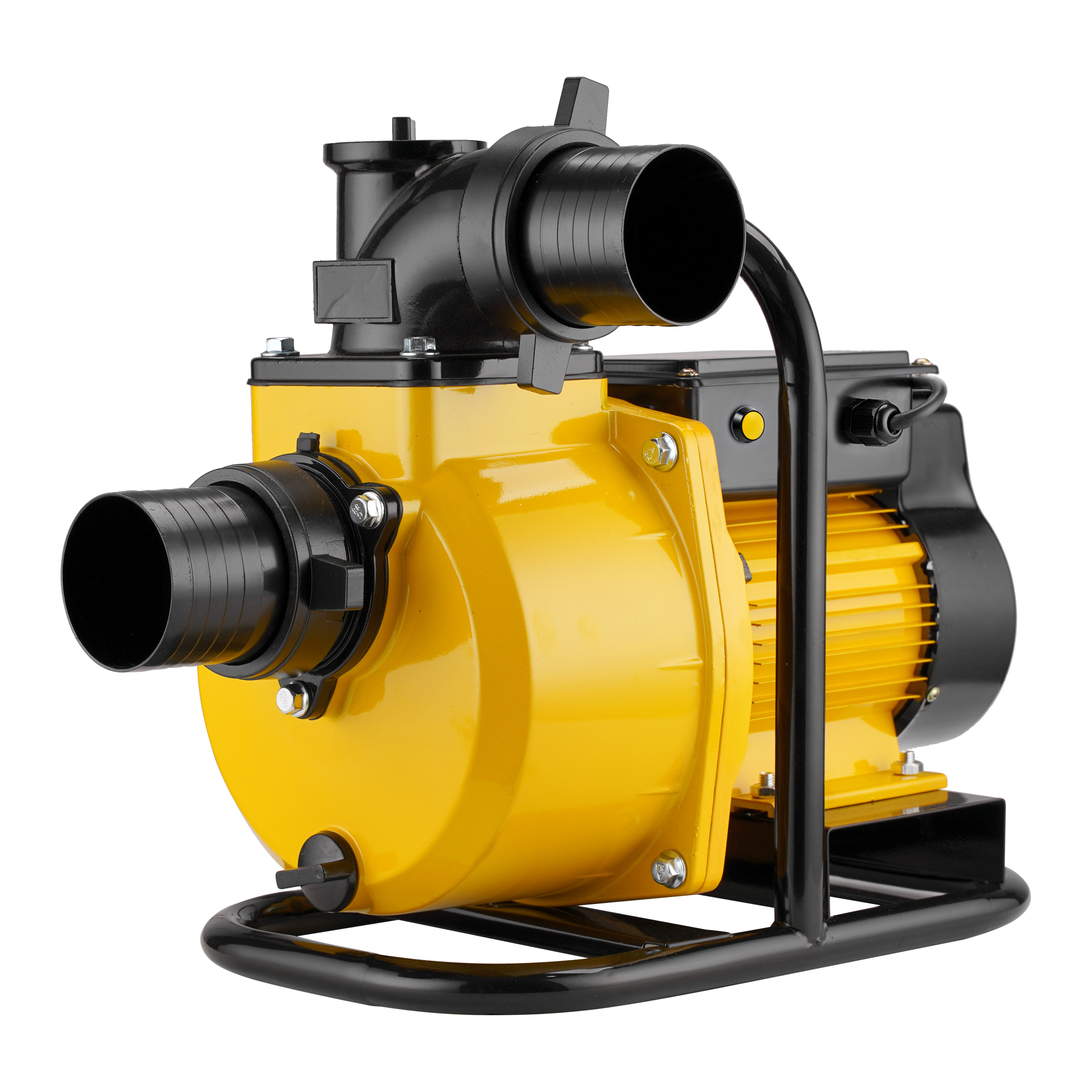

02 · Pond / canal / tank

Solar surface pump

The pump is installed outside the water source. Check the actual suction conditions, required flow, delivery height, pipe losses and available solar power.

Read the irrigation sizing guide →Explore surface pumps →

For either type, request the curve at your required flow and total dynamic head. Catalog maximum flow and maximum head are separate limits.

Start here

1 HP and 2 HP are the priority.

The eight examples below are taken from the supplied 2026 JIABO solar catalog. Flow and head are separate catalog maximums—not a combined operating point.

Most inquiries and orders

JBD52-30-300-3000 solar surface pump.

This frequently requested 3 kW AC/DC-capable surface-pump model is listed with 52 m³/h maximum flow, 30 m maximum head, 300 V and 3-inch inlet/outlet. Those maxima are separate curve limits; request the operating curve for your irrigation or water-transfer duty.

View JBD52-30-300-3000 specifications →Compare AC/DC solar surface pumps →Request its curve and quotation →

1 HP 2 HP ~5 HP ~10 HP

Most requested

1 HP class

750 W catalog power

Deep-well

JBYE6.5-55-96-750

Max. flow: 6.5 m³/h
Max. head: 55 m
Rated DC: 96 V DC
Outlet: 1.5"

View model details →Explore deep-well family →

Surface

JBDQ20-14-96-750

Max. flow: 20 m³/h
Max. head: 14 m
Rated DC: 96 V DC
Outlet: 2" × 2"

View model details →Explore surface family →

Most requested

2 HP class

1,500 W catalog power

Deep-well

JBYE7.0-110-192-1500

Max. flow: 7.0 m³/h
Max. head: 110 m
Rated DC: 192 V DC
Outlet: 1.5"

View model details →Explore deep-well family →

Surface

JBDQ45-17-192-1500

Max. flow: 45 m³/h
Max. head: 17 m
Rated DC: 192 V DC
Outlet: 3" × 3"

View model details →Explore surface family →

Larger systems

~5 HP class

4,000 W catalog power

Deep-well

JBYE16.5-160-400-4000

Max. flow: 16.5 m³/h
Max. head: 160 m
Rated DC: 400 V DC
Outlet: 2"

View model details →Explore deep-well family →

Surface

JBDR145-16-400-4000-6

Max. flow: 145 m³/h
Max. head: 16 m
Rated DC: 400 V DC
Outlet: 6" × 6"

View model details →Explore surface family →

Larger systems

~10 HP class

7,500 W catalog power

Deep-well

JBYE18.0-230-400-7500

Max. flow: 18.0 m³/h
Max. head: 230 m
Rated DC: 400 V DC
Outlet: 2"

View model details →Explore deep-well family →

Surface

JBDR160-30-400-7500-6

Max. flow: 160 m³/h
Max. head: 30 m
Rated DC: 400 V DC
Outlet: 6" × 6"

View model details →Explore surface family →

HP is an approximate comparison of the catalog’s watt ratings: 750 W ≈ 1.0 HP, 1,500 W ≈ 2.0 HP, 4,000 W ≈ 5.4 HP, and 7,500 W ≈ 10.1 HP. The catalog does not label a separate exact 5 HP model. Verify the pump curve, solar-array voltage, water level, and duty point before selection.

How to read a solar pump model

Max. flow – max. head – voltage – power.

The four main numbers provide a quick specification reference. They are separate maximum values; use the performance curve to confirm the flow available at your required head.

160-30-400-7500

160 m³/h maximum flow30 m maximum head400 V rated voltage7,500 W rated power

DC or AC/DC controller?

Check the exact model and controller in the catalog. The -H suffix identifies listed AC/DC variants, including the JBD52-30-300-3000-3H. The catalog also lists DC models above 3 kW, so power alone does not identify the input type.

How many solar panels?

There is no universal panel count. The catalog’s connection tables use controller voltage and module wattage: for a listed 300 V, 3 kW controller they show 8 × 550/650 W or 16 × 250/300 W modules. Confirm each module’s open-circuit voltage, string arrangement and the exact controller input limits before installation. See catalog PDF pages 4–5 →

Solar pump model parameters

Compare flow, head, voltage and power.

This is a technical parameter list only; no prices are published. The values encoded in each model name are catalog maximums or ratings. Maximum flow and maximum head are separate curve limits and are not achieved simultaneously.

AC/DC solar surface pump sets

Surface-pump packages with AC/DC-capable controller and standard accessories.

Model	Max. flow	Max. head	Voltage	Power
JBD20-18-110-1100-2H	20 m³/h	18 m	110 V	1,100 W
JBD25-20-120-1500-2H	25 m³/h	20 m	120 V	1,500 W
JBD25-25-200-2200-2H	25 m³/h	25 m	200 V	2,200 W
JBD35-15-110-1100-3H	35 m³/h	15 m	110 V	1,100 W
JBD45-18-120-1500-3H	45 m³/h	18 m	120 V	1,500 W
JBD50-25-200-2200-3H	50 m³/h	25 m	200 V	2,200 W
JBD52-30-300-3000-3H	52 m³/h	30 m	300 V	3,000 W
JBD50-15-120-1500-4H	50 m³/h	15 m	120 V	1,500 W
JBD60-20-200-2200-4H	60 m³/h	20 m	200 V	2,200 W
JBD60-25-300-3000-4H	60 m³/h	25 m	300 V	3,000 W
JBD145-16-400-4000-6H380HLV	145 m³/h	16 m	400 V	4,000 W
JBD160-20-360-5500-6H	160 m³/h	20 m	360 V	5,500 W
JBD160-30-400-7500-6H	160 m³/h	30 m	400 V	7,500 W
JBD5-14-72-600-H	5 m³/h	14 m	72 V	600 W
JBD20-14-96-750-H	20 m³/h	14 m	96 V	750 W
JBD8-15-144-1100-H	8 m³/h	15 m	144 V	1,100 W
JBD45-17-192-1500-H	45 m³/h	17 m	192 V	1,500 W
JBD60-16-280-2200-H	60 m³/h	16 m	280 V	2,200 W
JBD80-20-300-3000-5H	80 m³/h	20 m	300 V	3,000 W

AC/DC solar deep-well pump sets

Submersible borehole-pump packages with AC/DC-capable controller and standard accessories. This group includes -H models and models above 3000 W.

Model	Max. flow	Max. head	Voltage	Power
JBYD12.0-220-400-4000	12.0 m³/h	220 m	400 V	4,000 W
JBYD16.5-160-400-4000	16.5 m³/h	160 m	400 V	4,000 W
JBYD19.0-125-400-4000	19.0 m³/h	125 m	400 V	4,000 W
JBYD34.0-75-400-4000	34.0 m³/h	75 m	400 V	4,000 W
JBYD62-75-400-7500	62 m³/h	75 m	400 V	7,500 W
JBYD3.5-90-96-750-H	3.5 m³/h	90 m	96 V	750 W
JBYD4.5-130-192-1500-H	4.5 m³/h	130 m	192 V	1,500 W
JBYD6.5-55-96-750-H	6.5 m³/h	55 m	96 V	750 W
JBYD7.0-110-192-1500-H	7.0 m³/h	110 m	192 V	1,500 W
JBYD9.0-35-96-750-H	9.0 m³/h	35 m	96 V	750 W
JBYD10.0-90-192-1500-H	10.0 m³/h	90 m	192 V	1,500 W
JBYD13.0-30-96-750-H	13.0 m³/h	30 m	96 V	750 W
JBYD14.5-70-192-1500-H	14.5 m³/h	70 m	192 V	1,500 W
JBYD20.0-45-192-1500-H	20.0 m³/h	45 m	192 V	1,500 W
JBYD12.0-220-400-4000-380HLV	12.0 m³/h	220 m	400 V	4,000 W
JBYD16.5-160-400-4000-380HLV	16.5 m³/h	160 m	400 V	4,000 W
JBYD19.0-125-400-4000-380HLV	19.0 m³/h	125 m	400 V	4,000 W

DC-only solar deep-well pump sets

DC-only submersible borehole-pump packages with controller and standard accessories. Models without -H at 3000 W or below are grouped here.

Model	Max. flow	Max. head	Voltage	Power
JBYD3.5-90-48-750	3.5 m³/h	90 m	48 V	750 W
JBYD4.5-130-125-1500	4.5 m³/h	130 m	125 V	1,500 W
JBD6.5-55-48-750-LV	6.5 m³/h	55 m	48 V	750 W
JBYD7.0-110-125-1500	7.0 m³/h	110 m	125 V	1,500 W
JBYD10.0-90-125-1500	10.0 m³/h	90 m	125 V	1,500 W
JBYD13.0-30-48-750-LV	13.0 m³/h	30 m	48 V	750 W
JBYD14.5-70-125-1500	14.5 m³/h	70 m	125 V	1,500 W
JBYD20.0-45-125-1500	20.0 m³/h	45 m	125 V	1,500 W
JBYD20-65-200-2200	20 m³/h	65 m	200 V	2,200 W
JBYD20-75-300-3000	20 m³/h	75 m	300 V	3,000 W
JBYD30-35-200-2200	30 m³/h	35 m	200 V	2,200 W
JBYD30-50-300-3000	30 m³/h	50 m	300 V	3,000 W

DC-only solar surface pump sets

DC-only surface-pump packages with controller and standard accessories.

Model	Max. flow	Max. head	Voltage	Power
JBXD-20-18-110-1100	20 m³/h	18 m	110 V	1,100 W
JBXD-25-20-120-1500	25 m³/h	20 m	120 V	1,500 W
JBXD-25-25-200-2200	25 m³/h	25 m	200 V	2,200 W
JBXD35-15-110-1100	35 m³/h	15 m	110 V	1,100 W
JBXD-45-18-120-1500	45 m³/h	18 m	120 V	1,500 W
JBXD-50-25-200-2200	50 m³/h	25 m	200 V	2,200 W
JBXD-52-30-300-3000	52 m³/h	30 m	300 V	3,000 W
JBXD-50-15-120-1500	50 m³/h	15 m	120 V	1,500 W
JBXD-60-20-200-2200	60 m³/h	20 m	200 V	2,200 W
JBXD-60-25-300-3000	60 m³/h	25 m	300 V	3,000 W

JBSD DC solar booster pump sets

Compact DC solar booster-pump packages for pressure boosting and water-supply duties.

Model	Max. flow	Max. head	Voltage	Power
JBSD8-33-48-550	8 m³/h	33 m	48 V	550 W
JBSD8-50-48-750	8 m³/h	50 m	48 V	750 W
JBSD14-48-72-1100	14 m³/h	48 m	72 V	1,100 W
JBSD14-64-110-1500	14 m³/h	64 m	110 V	1,500 W
JBSD14-80-200-2200	14 m³/h	80 m	200 V	2,200 W

JZD handheld DC solar pump sets

Portable handheld DC-only solar pumps for convenient water transfer and irrigation duties.

Model	Max. flow	Max. head	Voltage	Power
JZD-35-15-1200-3H	35 m³/h	15 m	Confirm controller	1,200 W
JZD-30-10-900-3H	30 m³/h	10 m	Confirm controller	900 W
JZD-45-15-1500-3H	45 m³/h	15 m	Confirm controller	1,500 W
JZD2.0-28-250	2.0 m³/h	28 m	Confirm controller	250 W

Current quotation

Ask JIABO for model availability and pricing.

Send the required model, quantity, duty point and destination. Our sales team will confirm the operating curve, controller, accessories and current quotation directly.

Email: sales@jiabofluid.com WhatsApp: +86 133 4581 6945

Explore the full solar range.

Deep-well, surface, drainage, pool and AC/DC hybrid families, with model tables and construction details on each family page.
