DC solar · JIABO Practical Series

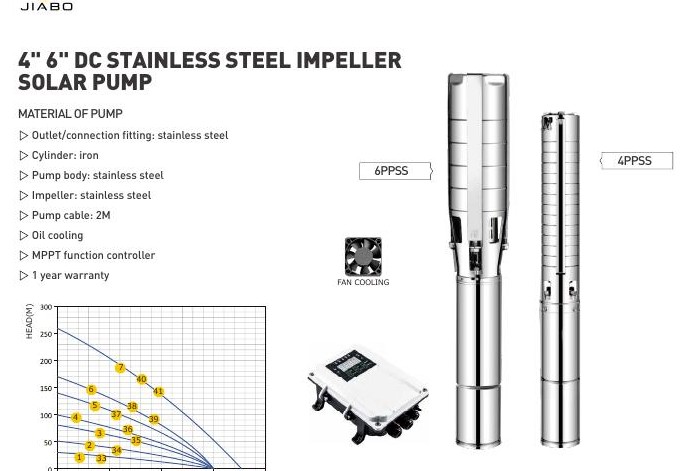

4" and 6" DC Stainless-Steel Impeller Solar Pumps
Stainless-steel multistage borehole pumps spanning high-head and high-volume solar applications.
Power300-7,500 W
Maximum flow3.0-62.0 m³/h
Maximum head30-260 m
Outlet1.25-3"
Applications
Where this family fits.
- Large farms
- Municipal water projects
- Long-distance transfer
Construction
Catalog-specified materials.
- Stainless-steel outlet, body and impeller
- Iron cylinder
- Oil cooling
- 2 m cable
Representative selection
Example models.
Values shown are catalog maximums, not a guaranteed operating point. Use the performance curve and system calculation for final selection.
| Model | Power | Max flow | Max head | Outlet |
|---|---|---|---|---|
| JBYF3.0-80-72-600 | 600 W | 3.0 m³/h | 80 m | 1.25" |
| JBYF6.5-260-385-3000 | 3,000 W | 6.5 m³/h | 260 m | 1.25" |
| JBYF28.0-55-385-3000 | 3,000 W | 28.0 m³/h | 55 m | 2" |
| JBYF60.0-30-385-3000 | 3,000 W | 60.0 m³/h | 30 m | 3" |
Avoid undersizing
Let us match the pump to your system.
Include flow, total dynamic head, well diameter, water level, pipe length, location and power source.
