DC solar · JIABO Practical Series

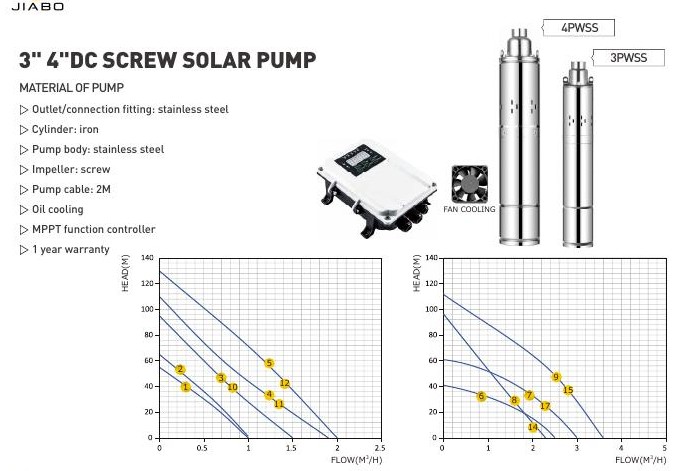

3" and 4" DC Screw Solar Pumps
Screw-type borehole pumps designed for high lift from wells using direct solar power.
Power180-750 W
Maximum flow1.0-3.6 m³/h
Maximum head40-130 m
Outlet1"
Applications
Where this family fits.
- Deep wells
- Off-grid farms
- Elevated storage tanks
Construction
Catalog-specified materials.
- Stainless-steel outlet and pump body
- Iron cylinder
- Screw impeller
- 2 m cable
Representative selection
Example models.
Values shown are catalog maximums, not a guaranteed operating point. Use the performance curve and system calculation for final selection.
| Model | Power | Max flow | Max head | Outlet |
|---|---|---|---|---|
| JBYZ1.0-55-24-180 | 180 W | 1.0 m³/h | 55 m | 1" |
| JBYZ2.0-130-96-750 | 750 W | 2.0 m³/h | 130 m | 1" |
| JBYZ2.5-40-24-250 | 250 W | 2.5 m³/h | 40 m | 1" |
| JBYZ3.6-110-96-750 | 750 W | 3.6 m³/h | 110 m | 1" |
Avoid undersizing
Let us match the pump to your system.
Include flow, total dynamic head, well diameter, water level, pipe length, location and power source.
