Request a quoteDC solar · JIABO Practical Series

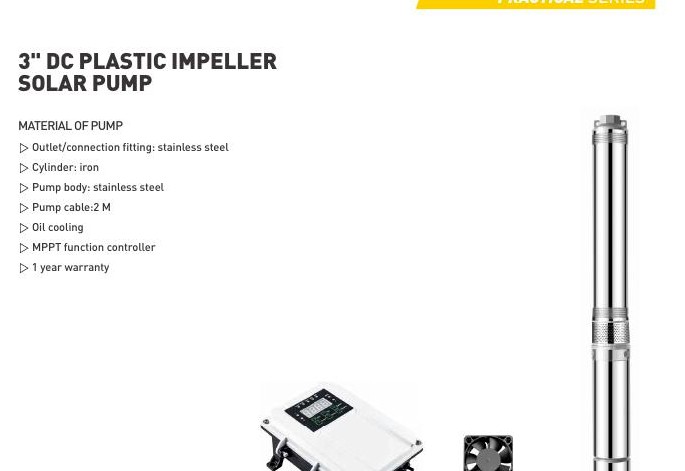

JIABO 3-inch solar submersible pumps fit narrow deep-well and borehole installations where outside diameter, lift and available solar power are critical. This plastic-impeller family spans 300 to 2,200 W with catalog maximum heads up to 230 m.
Applications
Construction
Representative selection
Values shown are catalog maximums, not a guaranteed operating point. Use the performance curve and system calculation for final selection.
| Model | Power | Max flow | Max head | Outlet |
|---|---|---|---|---|
| JBYX3.0-30-24-300 ↗ | 300 W | 3.0 m³/h | 30 m | 1" |
| JBYX3.5-120-144-1100 ↗ | 1,100 W | 3.5 m³/h | 120 m | 1" |
| JBYX3.5-230-280-2200 ↗ | 2,200 W | 3.5 m³/h | 230 m | 1" |
| JBYX6.5-160-280-2200 ↗ | 2,200 W | 6.5 m³/h | 160 m | 1" |
Buyer questions
Confirm the pump's exact outside diameter against the finished bore casing and leave the clearance required by the installation instructions. A nominal 3-inch family name is not a substitute for the current dimensional drawing.
Provide bore diameter, static and pumping water levels, delivery elevation, pipe length, daily water demand and available solar conditions. Select the operating point from the exact pump curve rather than combining catalog maximum flow and maximum head.
Avoid undersizing
Include flow, total dynamic head, well diameter, water level, pipe length, location and power source.
