DC solar · JIABO Practical Series
4" DC Plastic Impeller Solar Pumps
A broad 4-inch range covering high-head and higher-flow solar borehole duties.
Power300-7,500 W
Maximum flow3.0-34.0 m³/h
Maximum head30-230 m
Outlet1.25-2"
Applications
Where this family fits.
- Commercial irrigation
- Village water systems
- Reservoir filling
Construction
Catalog-specified materials.
- Stainless-steel outlet and body
- Iron cylinder
- Plastic impeller
- 2 m cable
Representative selection
Example models.
Values shown are catalog maximums, not a guaranteed operating point. Use the performance curve and system calculation for final selection.
| Model | Power | Max flow | Max head | Outlet |
|---|---|---|---|---|
| JBYE6.5-55-96-750 ↗ | 750 W | 6.5 m³/h | 55 m | 1.5" |
| JBYE7.0-110-192-1500 ↗ | 1,500 W | 7.0 m³/h | 110 m | 1.5" |
| JBYE16.5-160-400-4000 ↗ | 4,000 W | 16.5 m³/h | 160 m | 2" |
| JBYE18.0-230-400-7500 ↗ | 7,500 W | 18.0 m³/h | 230 m | 2" |

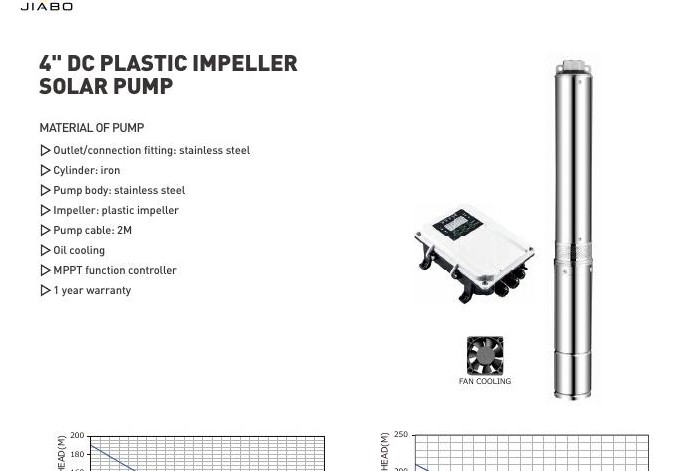

Supplied parameter sheets
Solar deep-well pump parameters.
Open any sheet to view the original parameter image at full size. Confirm the current model, controller and accessory configuration before ordering.
Parameter sheet 1 · Open full size ↗
Parameter sheet 2 · Open full size ↗
Parameter sheet 3 · Open full size ↗
Parameter sheet 4 · Open full size ↗
Parameter sheet 5 · Open full size ↗
Parameter sheet 6 · Open full size ↗
Parameter sheet 7 · Open full size ↗
Parameter sheet 8 · Open full size ↗
Parameter sheet 9 · Open full size ↗
Parameter sheet 10 · Open full size ↗
Parameter sheet 11 · Open full size ↗Avoid undersizing
Let us match the pump to your system.
Include flow, total dynamic head, well diameter, water level, pipe length, location and power source.
