What are the main specifications of JBD52-30-300-3000?
The catalog model JBD52-30-300-3000-3H is listed at 3,000 W with maximum flow 52 m³/h, maximum head 30 m, 300 V and 3-inch inlet/outlet. Maximum flow and maximum head are separate curve limits.
Request a quote← All solar pump families
DC solar · JIABO Practical Series
DC and AC/DC solar surface water pumps for farm irrigation and water transfer.
JIABO solar surface pumps serve accessible ponds, canals, tanks and other sources where suction conditions are suitable. The range includes DC and AC/DC-capable configurations, led by the frequently requested JBD52-30-300-3000 3 kW model.
Power150-7,500 W
Maximum flow1.3-160 m³/h
Maximum head14-40 m
Outlet1-6"
Applications
Where this family fits.
- Open-water irrigation
- Tank-to-tank transfer
- Farm water distribution
Construction
Catalog-specified materials.
- Family-dependent iron, stainless steel or aluminium pump heads
- Aluminium motor body
- Brass, iron or plastic impeller
- 1 m cable
Representative selection
Example models.
Values shown are catalog maximums, not a guaranteed operating point. Use the performance curve and system calculation for final selection.
| Model | Power | Max flow | Max head | Outlet |
|---|---|---|---|---|
| JBD52-30-300-3000-3H ↗ | 3,000 W | 52 m³/h | 30 m | 3×3" |
| JBDQ20-14-96-750 ↗ | 750 W | 20 m³/h | 14 m | 2×2" |
| JBDQ45-17-192-1500 ↗ | 1,500 W | 45 m³/h | 17 m | 3×3" |
| JBDR145-16-400-4000-6 ↗ | 4,000 W | 145 m³/h | 16 m | 6×6" |
| JBDR160-30-400-7500-6 ↗ | 7,500 W | 160 m³/h | 30 m | 6×6" |
Buyer questions
Choosing this solar pump family.
When should I choose an AC/DC solar surface pump?
Choose an AC/DC-capable configuration when the system needs solar operation plus a compatible AC or generator backup source. Confirm controller inputs, changeover arrangement and motor data for the exact model.
Can a solar surface pump draw from a deep well?
A surface pump is limited by available suction conditions and pipe losses. For water levels beyond practical suction lift, use a suitable submersible deep-well pump instead.

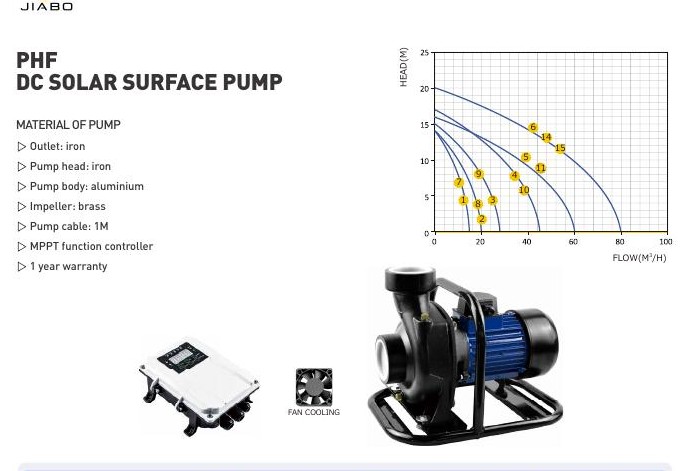

Supplied parameter sheets
Solar surface-pump parameters.
Open any sheet to view the original parameter image at full size. Confirm the current model, controller and accessory configuration before ordering.
Avoid undersizing
Let us match the pump to your system.
Include flow, total dynamic head, well diameter, water level, pipe length, location and power source.
