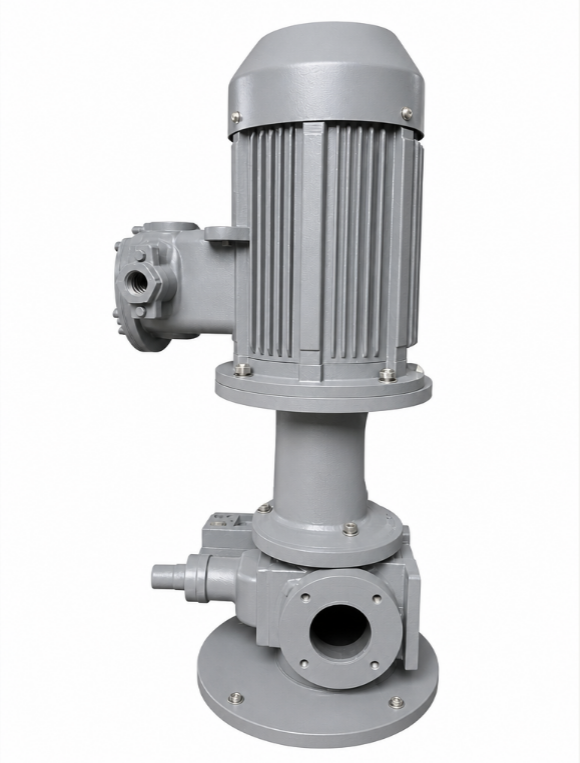

Self-Priming Oil Transfer Pump
Self-priming oil transfer pumps for diesel, lubricating oil and compatible petroleum liquids. Selection depends on viscosity, temperature, flow and discharge pressure.
Product photos
Explore the Oil series.
Select a photo to open its product information page. The supplied images do not identify exact model numbers; request a current datasheet before ordering.
Typical applications
Where this series may fit.
Application fit and final model depend on operating conditions. Please confirm with the current technical sheet.
- Oil-transfer inquiries
- Project-specific fluid handling
Technical overview
How this range is used.
These are series-level characteristics, not a performance guarantee for a specific model. Confirm flow, head or pressure, power, dimensions, materials, and operating limits against the current datasheet.
- Operating principle
Operating principle depends on the oil-pump model requested. - Configuration
Specify the required pump type, drive, and connection arrangement. - Liquid suitability
State oil grade, viscosity at operating temperature, and compatibility needs. - Typical use
Oil transfer and project-specific liquid handling.
Catalog-backed model data
Click a range to compare models.
Values are transcribed from the supplied manufacturer catalogs. Confirm the current curve, materials, and operating limits before ordering.
KCB and 2CY gear-oil pump parameters and dimensions
Complete supplied KCB/2CY table. Flow, pressure and vacuum are performance references; H, L, L1, L2, L3, A, B, C, D and K are dimensions in millimetres unless the entry is a threaded connection.
| Model | Flow (m³/h) | Pressure (MPa) | Vacuum (m H₂O) | Inlet / outlet | H | L | L1 | L2 | L3 | A | B | C | D | n–m | Port distance K | Motor model | Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KCB18.3 / 2CY1.1/14.5 | 1.1 | 1.45 | 5 | G3/4" | 109 | 583 | 405 | 72 | 250 | 205 | 250 | 79 | — | — | 200 | Y90L-4 | 1.5 |
| KCB33.3 / 2CY2/14.5 | 2 | 1.45 | 5 | G3/4" | 119 | 618 | 437 | 72 | 250 | 205 | 250 | 79 | — | — | 200 | Y100L1-4 | 2.2 |
| KCB55 / 2CY3.3/3.3 | 3.3 | 0.33 | 5 | G1" | 109 | 588 | 405 | 72 | 250 | 205 | 250 | 86 | — | — | 200 | Y90L-4 | 1.5 |
| KCB83.3 / 2CY5/3.3 | 5 | 0.33 | 5 | G1 1/2" | 119 | 658 | 437 | 72 | 250 | 205 | 250 | 99 | — | — | 200 | Y100L2-4 | 2.2 |
| KCB133 / 2CY8/3.3 | 8 | 0.33 | 5 | G2" | 182 | 778 | 688 | 130 | 450 | 250 | 340 | 32 | — | — | 260 | Y132S-6 | 3 |
| 2CY8/6 | 8 | 0.6 | 5 | G2" | 182 | 818 | 688 | 130 | 450 | 250 | 340 | 32 | — | — | 260 | Y132M1-6 | 4 |
| 2CY8/10 | 8 | 1.0 | 5 | G2" | 182 | 818 | 688 | 130 | 450 | 250 | 340 | 32 | — | — | 260 | Y132M2-6 | 5.5 |
| 2CY12/1.3 | 12 | 0.13 | 5 | G2" | 172 | 703 | 576 | 130 | 370 | 250 | 305 | 32 | — | — | 260 | Y112M-4 | 4 |
| KCB200 / 2CY12/3.3 | 12 | 0.33 | 5 | G2" | 182 | 778 | 688 | 130 | 450 | 250 | 340 | 32 | — | — | 260 | Y132S-4 | 5.5 |
| 2CY12/6 | 12 | 0.6 | 5 | G2" | 182 | 778 | 688 | 130 | 450 | 250 | 340 | 32 | — | — | 260 | Y132S-4 | 5.5 |
| 2CY12/10 | 12 | 1.0 | 5 | G2" | 182 | 818 | 688 | 130 | 450 | 250 | 340 | 32 | — | — | 260 | Y132M-4 | 7.5 |
| KCB300 / 2CY18/3.6 | 18 | 0.36 | 5 | 70 | 187 | 898 | 723 | 120 | 480 | 280 | 340 | 45 | 123 | 6-M14 | 234 | Y132M2-6 | 5.5 |
| 2CY18/6 | 18 | 0.6 | 5 | 70 | 242 | 983 | 912 | 155 | 600 | 280 | 380 | 30 | 123 | 6-M14 | 234 | Y160M-6 | 7.5 |
| KCB483 / 2CY29/3.6 | 29 | 0.36 | 5 | 70 | 187 | 898 | 723 | 120 | 480 | 280 | 340 | 45 | 123 | 6-M14 | 234 | Y132M-4 | 7.5 |
| 2CY29/6 | 29 | 0.6 | 5 | 70 | 242 | 983 | 912 | 155 | 600 | 280 | 380 | 30 | 123 | 6-M14 | 234 | Y160M-4 | 11 |
| KCB633 / 2CY38/2.8 | 38 | 0.28 | 5 | 100 | 230 | 1094 | 912 | 155 | 600 | 280 | 380 | 60 | 158 | 8-M16 | 280 | Y160L-6 | 11 |
| 2CY38/6 | 38 | 0.6 | 5 | 100 | 286 | 1224 | 943 | 150 | 650 | 360 | 360 | 65 | 158 | 8-M16 | 280 | Y200L2-6 | 22 |
| KCB960 / 2CY60/3 | 60 | 0.3 | 5 | 100 | 230 | 1159 | 955 | 155 | 650 | 280 | 410 | 60 | 158 | 8-M16 | 280 | Y180L-4 | 22 |
| 2CY100/3 | 100 | 0.3 | 5 | 150 | 440 | 1586 | 1325 | 110 | 550×2 | 450 | 450 | -20 | 210 | 8-M16 | 400 | Y250M-8 | 30 |
| 2CY100/6 | 100 | 0.6 | 5 | 150 | 465 | 1856 | 1536 | 138 | 420×3 | 600 | 600 | 8 | 210 | 8-M16 | 400 | Y315S-8 | 55 |
| 2CY120/3 | 120 | 0.3 | 5 | 150 | 440 | 1586 | 1325 | 110 | 550×2 | 450 | 450 | -20 | 210 | 8-M16 | 400 | Y250M-8 | 30 |
| 2CY120/6 | 120 | 0.6 | 5 | 150 | 465 | 1856 | 1536 | 138 | 420×3 | 600 | 600 | 8 | 210 | 8-M16 | 400 | Y315S-8 | 55 |
| 2CY150/3 | 150 | 0.3 | 5 | 150 | 460 | 1696 | 1376 | 138 | 550×2 | 500 | 500 | 8 | 210 | 8-M16 | 400 | Y280S-8 | 37 |
| 2CY150/6 | 150 | 0.6 | 5 | 150 | 465 | 1946 | 1536 | 138 | 420×3 | 600 | 600 | 8 | 210 | 8-M16 | 400 | Y315M1-8 | 75 |
Selection information
What we need to size it.
- Oil type and viscosity
- Flow and discharge pressure
- Temperature, seal and material requirements
Reference specification sheet
Parameters for an international quotation.
These values describe common enquiry formats in Europe and North America—not confirmed ratings for every JIABO model. The quotation and motor nameplate control the final specification.
| Primary duty data | Oil type, required flow, discharge pressure, suction lift and continuous or intermittent operating schedule. |
|---|---|
| Liquid data | Viscosity at minimum and maximum temperature, density, lubricity, additives and any entrained solids. |
| Electrical reference | Europe: 1 × 220–240 V, 50 Hz (smaller duties) or 3 × 380–415 V, 50 Hz. North America: commonly 3 × 230/460 V, 60 Hz. Confirm the exact motor nameplate before ordering. |
| Construction to specify | Pump principle, casing and internal materials, seal, connection standard, drive speed and any hazardous-area motor requirement. |
| Documents to request | Viscosity-corrected performance, absorbed power, suction limit, material compatibility and site-safety confirmation. |
Regional electrical examples are reference conventions supported by published manufacturer data: Grundfos 230/400 V, 50 Hz data ↗ and Franklin Electric 230/460 V, 60 Hz data ↗. Availability must be confirmed for the selected JIABO model.
Technical confirmation
Ask for the current model table and curve.
Use the published table as a shortlist only. Send your operating point so JIABO can confirm the exact model, current performance curve, motor supply and materials.
