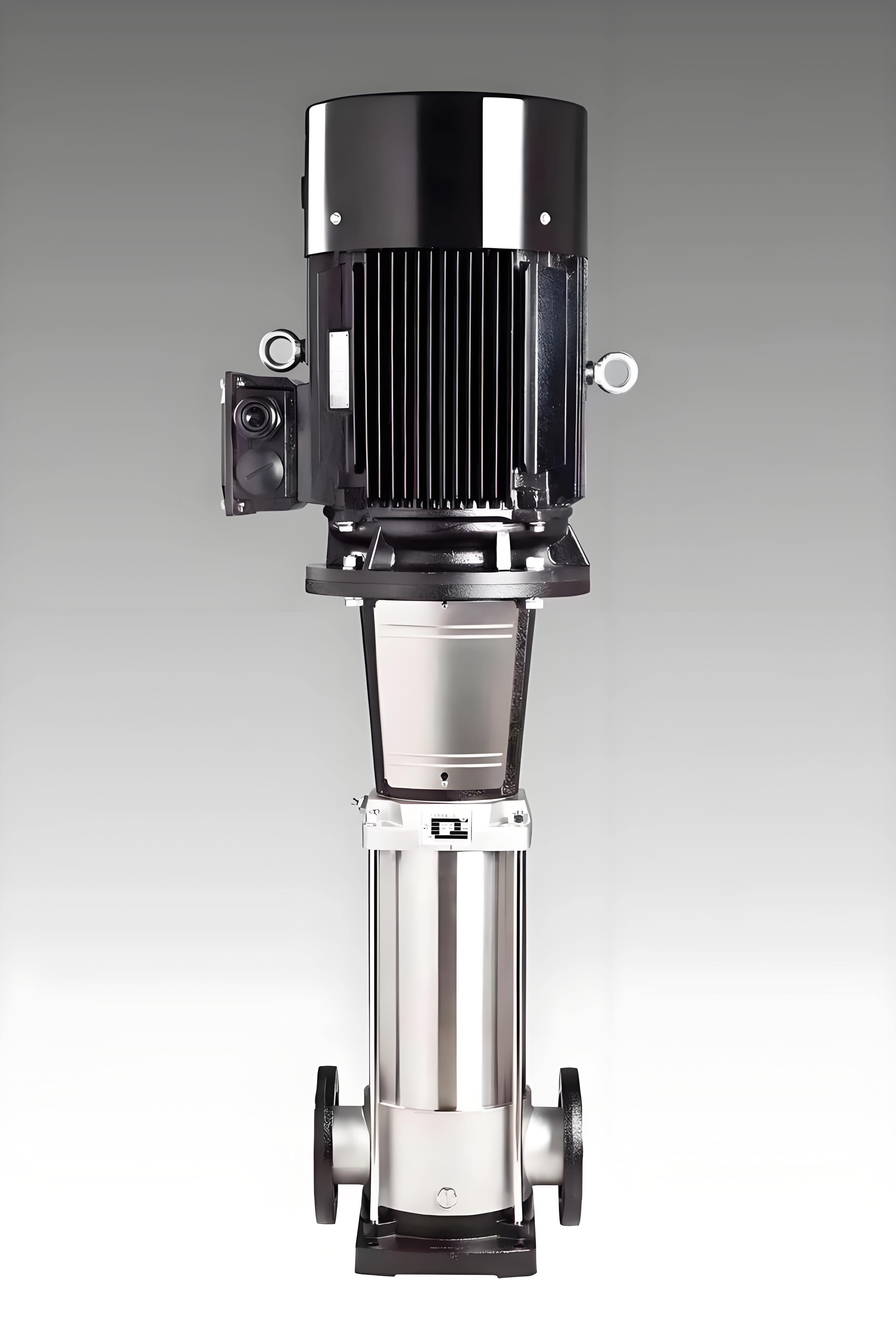

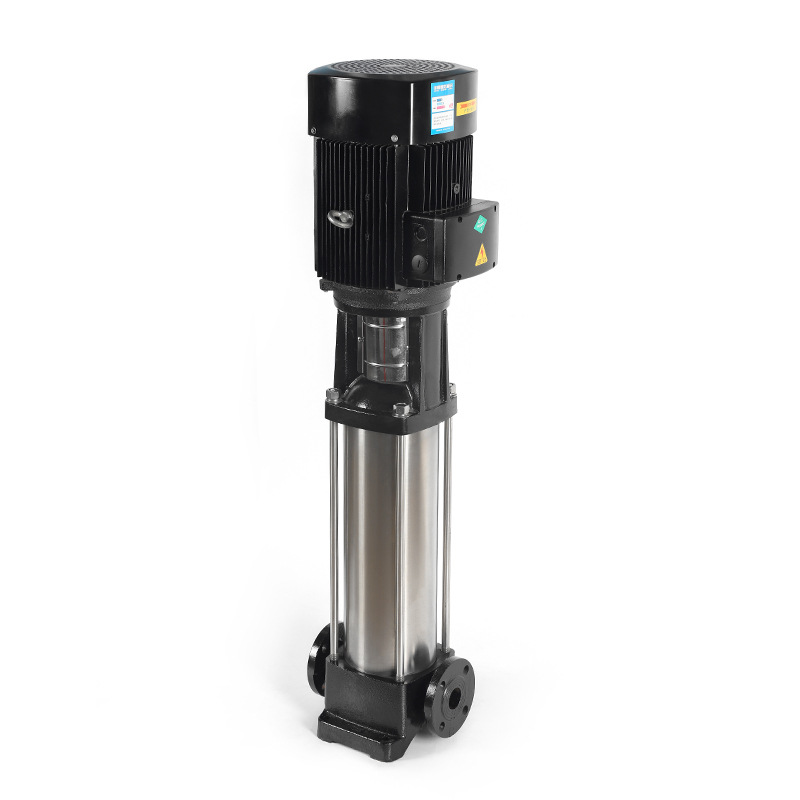

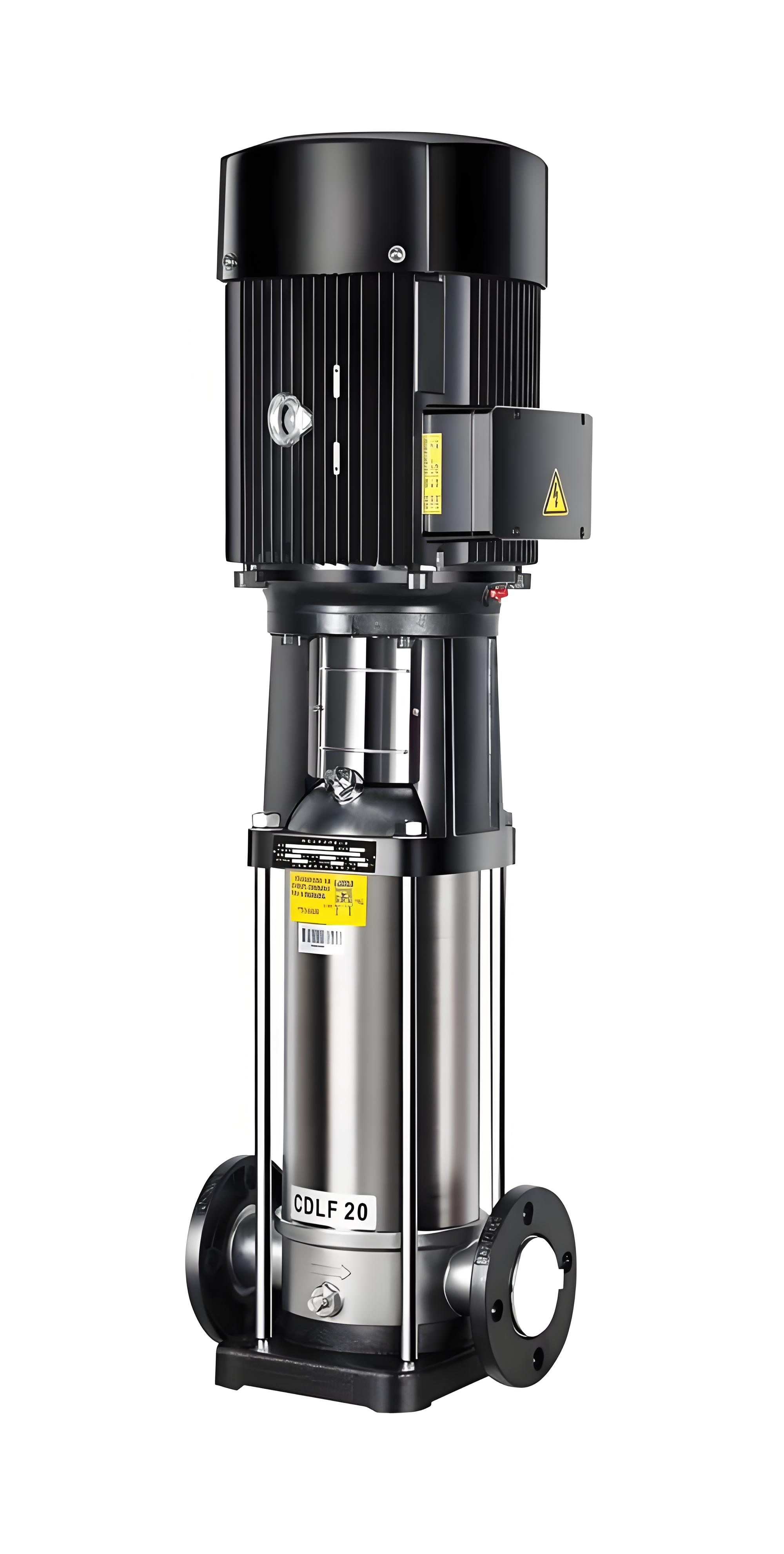

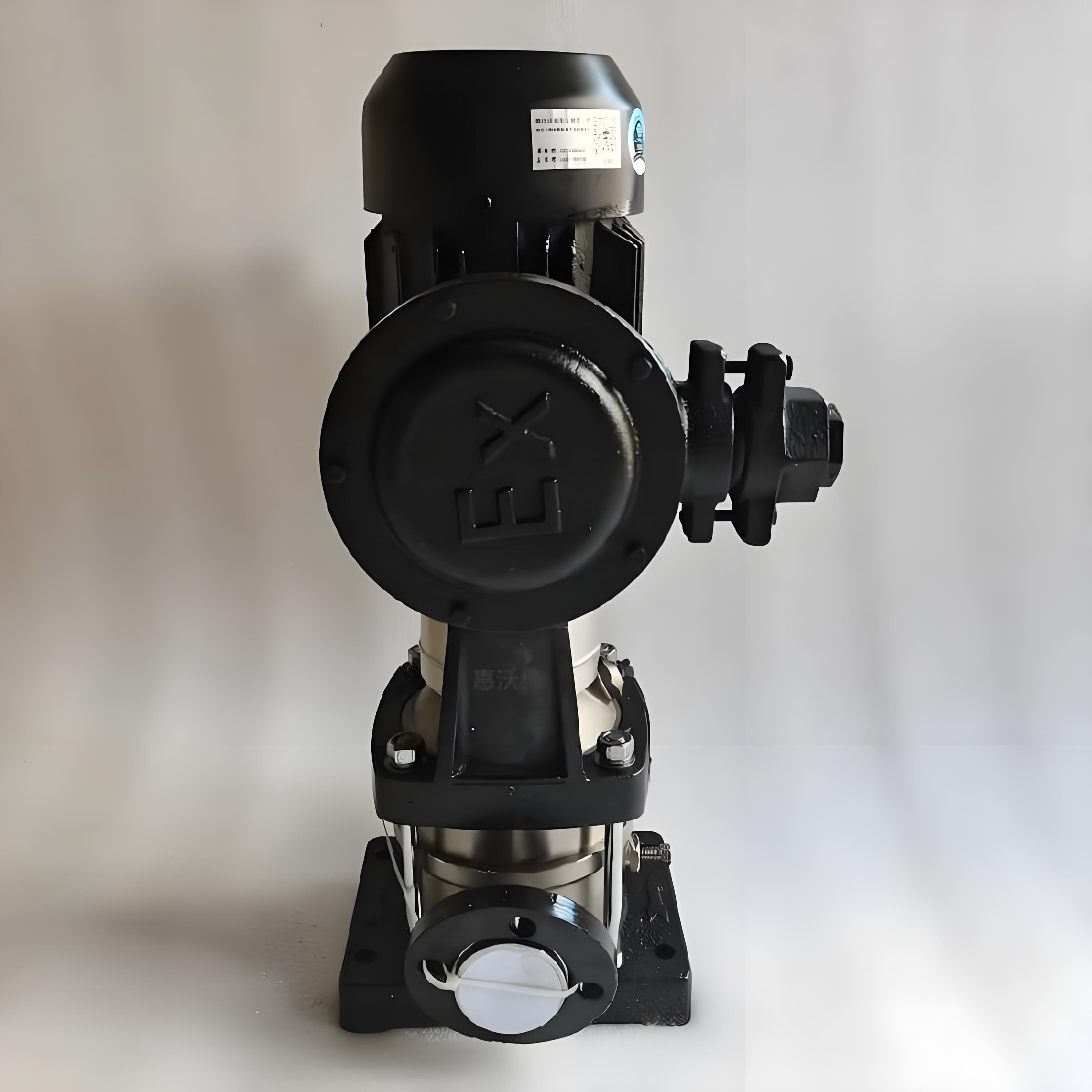

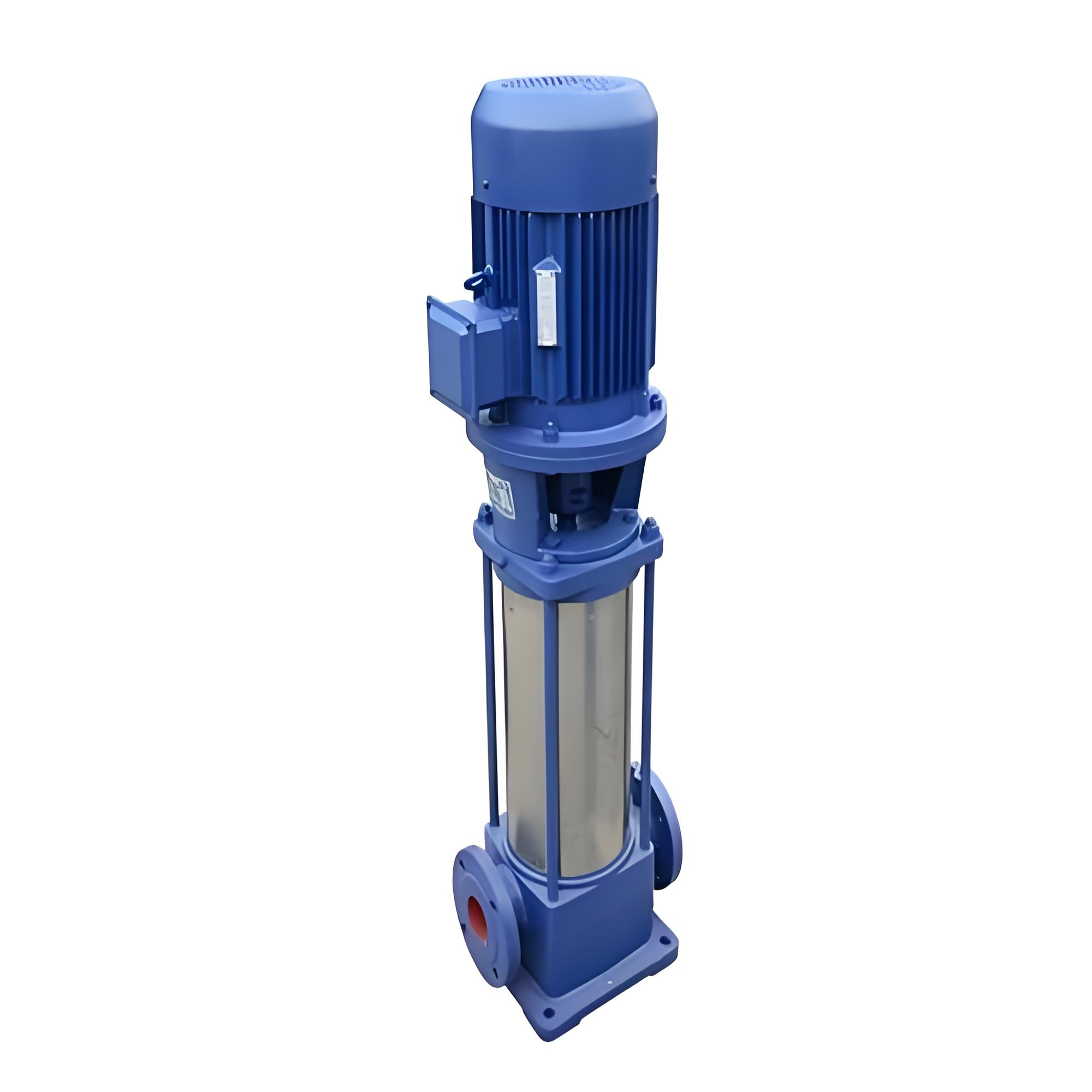

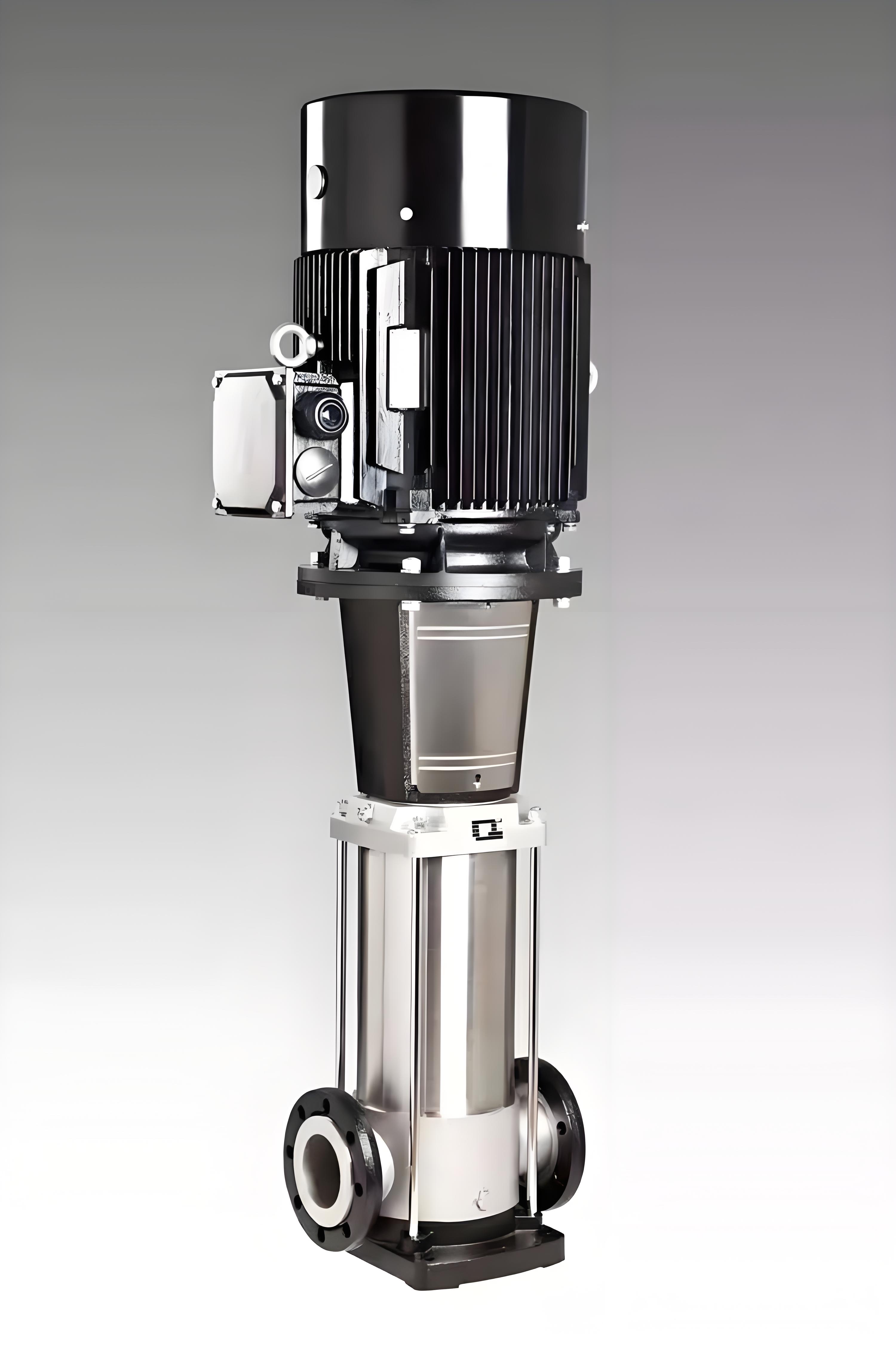

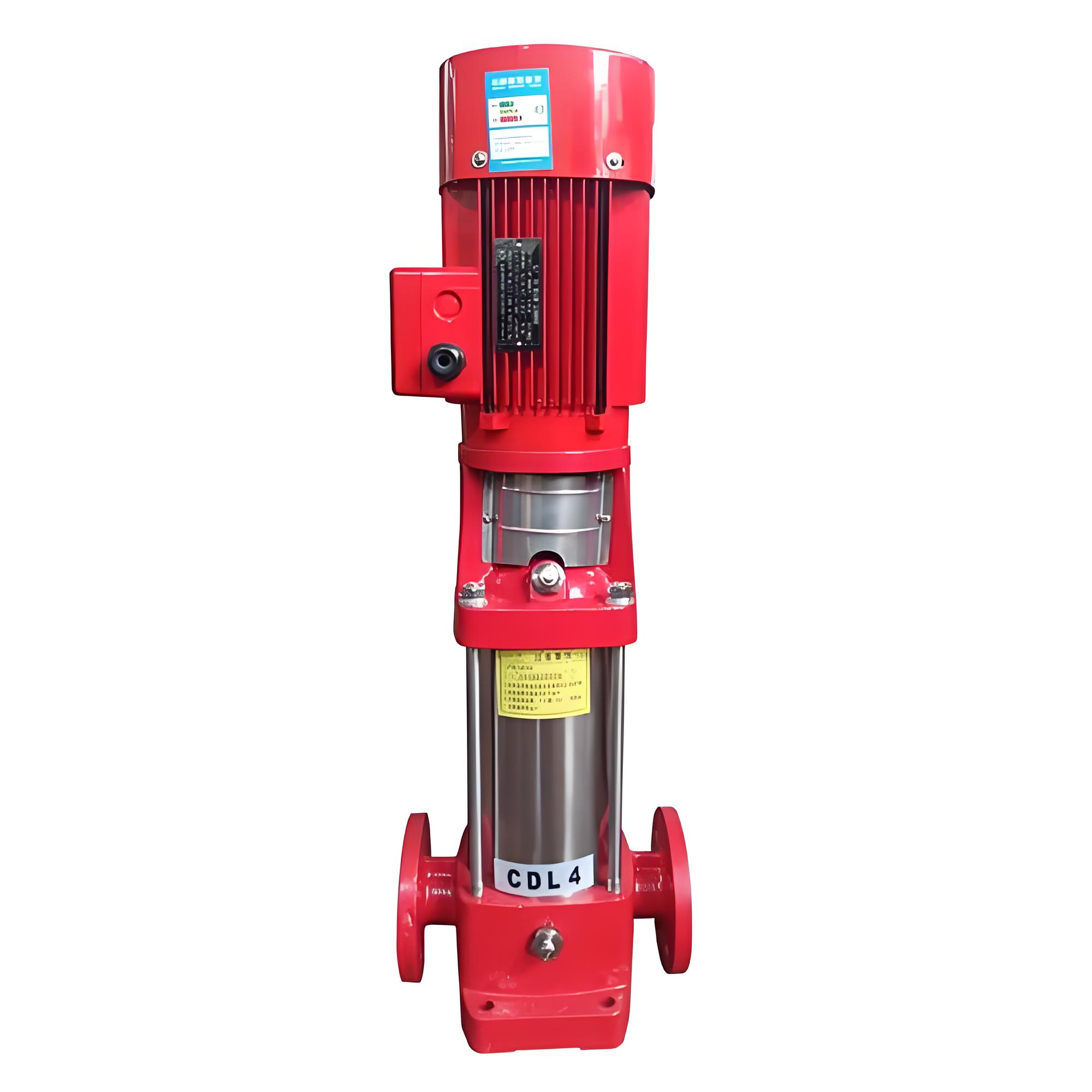

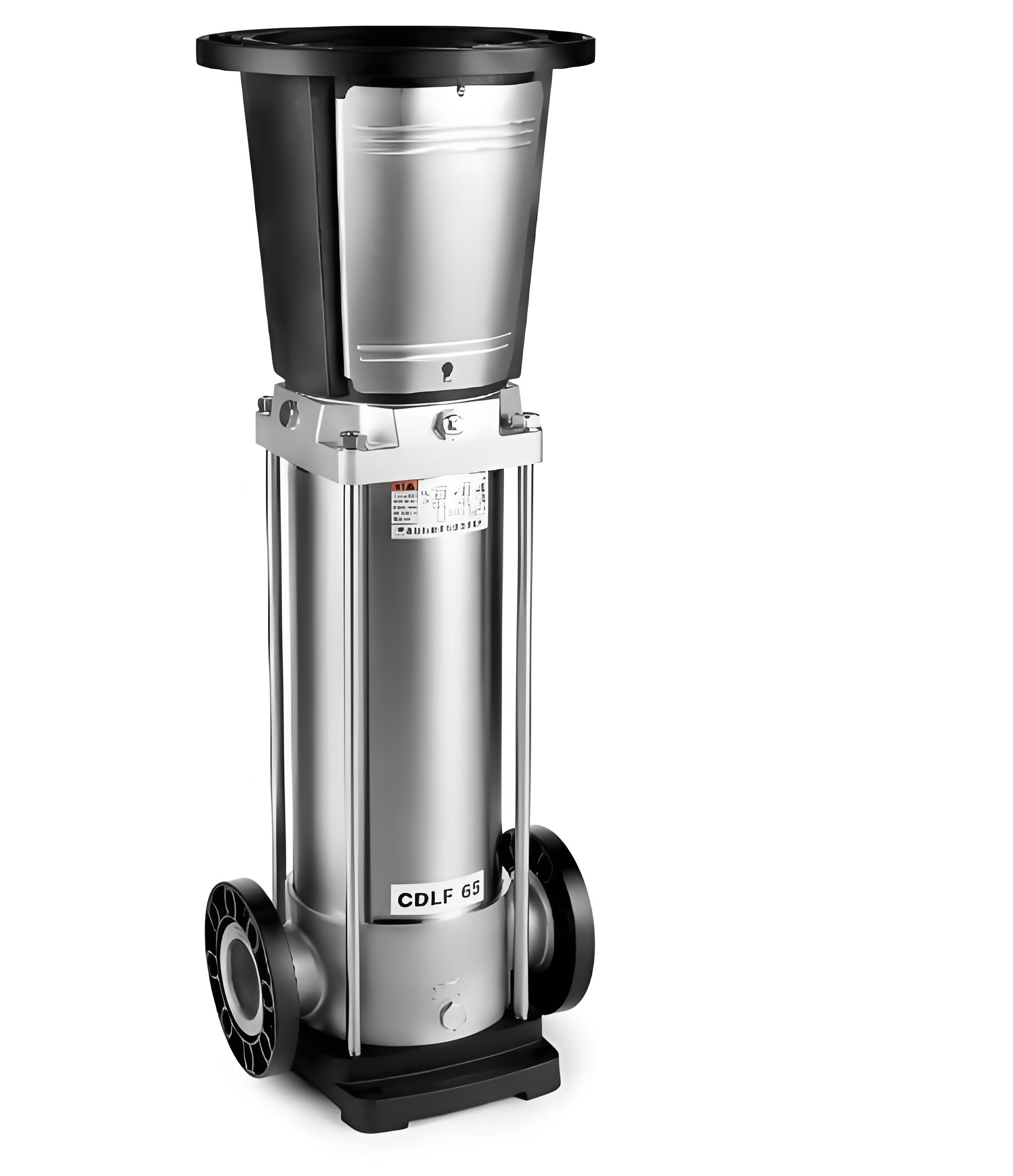

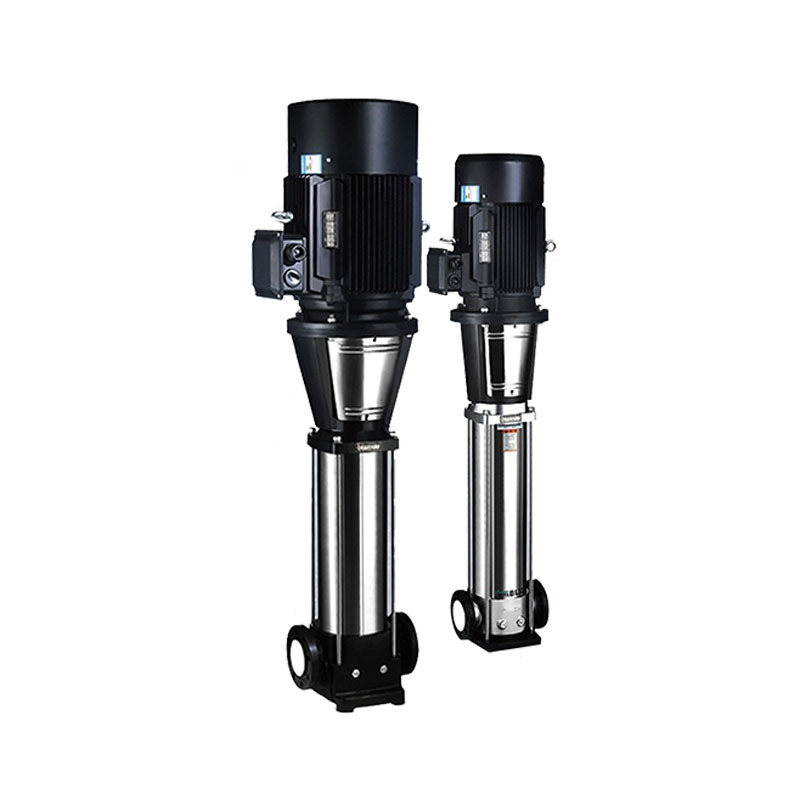

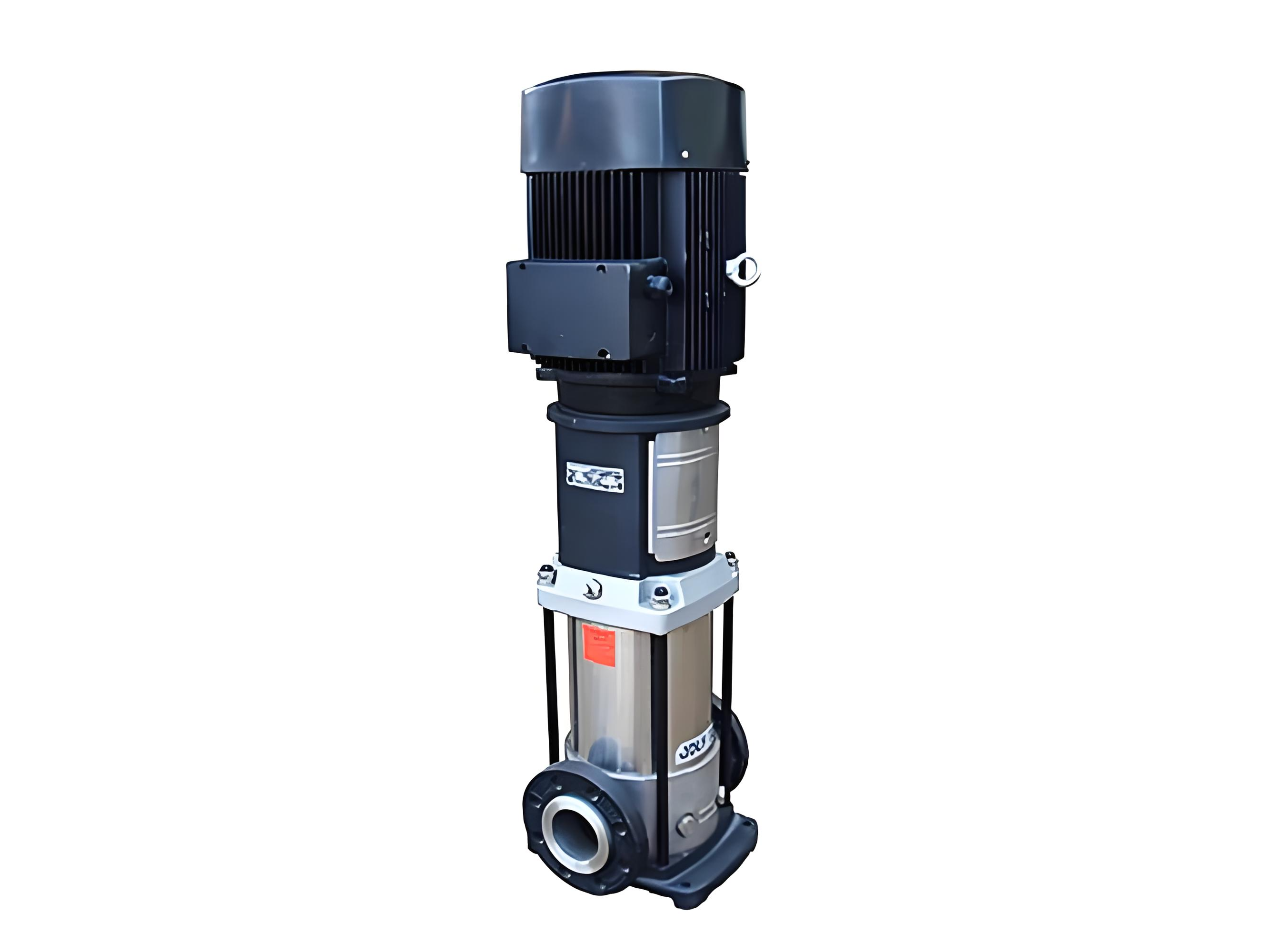

CDL Vertical Multistage High-Pressure Pump

Zhejiang Jiabo CDL/CDLF stainless-steel vertical multistage centrifugal pumps for high-pressure water supply, reverse osmosis, industrial water treatment and building pressure boosting, with a complete 219-model parameter sheet.

Request product details
CDL Vertical Multistage High-Pressure Pump

Typical applications

Where this series may fit.

Application fit and final model depend on operating conditions. Please confirm with the current technical sheet.

Technical overview

How this range is used.

These are series-level characteristics, not a performance guarantee for a specific model. Confirm flow, head or pressure, power, dimensions, materials, and operating limits against the current datasheet.

Zhejiang Jiabo Fluid Equipment Co., Ltd. · CDL / CDLF

Non-self-priming vertical multistage centrifugal pumps.

Zhejiang Jiabo Fluid Equipment Co., Ltd. supplies the CDL/CDLF vertical multistage range with a standard vertical motor and a cartridge-style mechanical seal for convenient replacement. The range covers duties from mains water to compatible industrial liquids across different temperature, flow and pressure requirements. CDL is intended for non-corrosive liquids; CDLF uses stainless-steel wetted components for mildly corrosive liquids. Confirm whether 304 or 316 stainless steel is required for the application.

Applications

Where CDL/CDLF may be used.

  • Water supply: treatment-plant filtration and transfer, distribution zones, main-line boosting and high-rise building pressure boosting.
  • Industrial boosting: process-water systems, washing systems, high-pressure cleaning and fire-protection systems.
  • Industrial liquid transfer: cooling and air-conditioning systems, boiler feed and condensate systems, machine-tool support, and compatible acid or alkali service.
  • Water treatment: ultrafiltration, reverse osmosis, distillation, separation systems and swimming pools.
  • Irrigation: farmland irrigation, sprinkler systems and drip irrigation.

Permitted liquids

Clean, thin liquids without fibres.

  • Non-flammable and non-explosive liquids without solid particles or fibres.
  • Examples include mineral water, softened water, purified water, clean oil and compatible light-chemical liquids.
  • Liquids with density or viscosity above water may require a higher-power motor.
  • Compatibility depends particularly on chloride content, pH, temperature, solvents and oil content.

Operating limits

Series-level conditions.

Liquid temperature
Standard: −15°C to +70°C
Hot-water version: −15°C to +120°C
Maximum ambient temperature
+40°C
Maximum installation altitude
1,000 m

Motor

Standard two-pole motor.

Construction
Totally enclosed, fan-cooled
Protection / insulation
IP55 / Class F
50 Hz voltage options
1 × 220–230/240 V
3 × 200–220/346–380 V
3 × 220–240/380–415 V
3 × 380–415 V

Performance-curve basis

How the published values were measured.

  1. Curves are based on constant motor speed, normally 2,900 r/min; the largest listed frames use 2,950 r/min.
  2. Curve tolerances follow ISO 9906, Annex A, as stated in the supplied description.
  3. Tests use air-free water at 20°C with a kinematic viscosity of 1 mm²/s.
  4. Operate within the approved performance range to avoid overheating at very low flow or motor overload at excessive flow.

Model designation

Reading a CDLF 4-120 code.

CDLF 4-120

CDL — light-duty stainless-steel vertical multistage centrifugal pump

F — stainless-steel wetted construction, typically 304 or 316 by confirmed configuration

4 — nominal flow family in m³/h

120 — stage designation, expressed as stage count × 10 in this example

Construction reference

Principal components and materials.

This is a series-level reference translated from the supplied product description. Confirm the exact bill of materials for the ordered pump.

ComponentMaterialAISI / ASTM reference
Pump headCast ironASTM 25B
Mechanical sealTungsten-carbide and fluoroelastomer sealing systemConfirm current seal code
Discharge guide vaneStainless steelAISI 304
Guide vaneStainless steelAISI 304
Support guide vaneStainless steelAISI 304
DiffuserStainless steelAISI 304
BearingTungsten carbide—
ImpellerStainless steelAISI 304
ShaftStainless steelAISI 304
Impeller spacerStainless steelAISI 304
Pressure sleeveStainless steelAISI 304
CouplingCarbon steel—
CDLF pump-head linerStainless steelAISI 304
CDLF inlet and outlet sectionStainless steelAISI 304
CDLF baseCast ironASTM 25B
CDL inlet and outlet sectionCast ironASTM 25B

Complete Zhejiang Jiabo parameter sheet

219 CDL/CDLF model references.

The complete supplied table is published below in English. It covers nominal flow families from 1 to 150 m³/h, heads from 9 to 259 m, and motor powers from 0.37 to 75 kW.

ModelRated headRated flowMotor powerRated speed
CDL1-211.5 m1 m³/h0.37 kW2,900 r/min
CDL1-317 m1 m³/h0.37 kW2,900 r/min
CDL1-422.5 m1 m³/h0.37 kW2,900 r/min
CDL1-528 m1 m³/h0.37 kW2,900 r/min
CDL1-633.5 m1 m³/h0.37 kW2,900 r/min
CDL1-739 m1 m³/h0.37 kW2,900 r/min
CDL1-845 m1 m³/h0.55 kW2,900 r/min
CDL1-951 m1 m³/h0.55 kW2,900 r/min
CDL1-1057 m1 m³/h0.55 kW2,900 r/min
CDL1-1795 m1 m³/h1.1 kW2,900 r/min
CDL1-19106 m1 m³/h1.1 kW2,900 r/min
CDL1-21117 m1 m³/h1.1 kW2,900 r/min
CDL1-23128 m1 m³/h1.1 kW2,900 r/min
CDL1-25139 m1 m³/h1.5 kW2,900 r/min
CDL1-27150 m1 m³/h1.5 kW2,900 r/min
CDL1-30166 m1 m³/h1.5 kW2,900 r/min
CDL1-33183 m1 m³/h2.2 kW2,900 r/min
CDL1-36200 m1 m³/h2.2 kW2,900 r/min
CDL2-215 m2 m³/h0.37 kW2,900 r/min
CDL2-322 m2 m³/h0.37 kW2,900 r/min
CDL2-430 m2 m³/h0.55 kW2,900 r/min
CDL2-537 m2 m³/h0.55 kW2,900 r/min
CDL2-645 m2 m³/h0.75 kW2,900 r/min
CDL2-752 m2 m³/h0.75 kW2,900 r/min
CDL2-967 m2 m³/h1.1 kW2,900 r/min
CDL2-1182 m2 m³/h1.1 kW2,900 r/min
CDL2-1398 m2 m³/h1.5 kW2,900 r/min
CDL2-15112 m2 m³/h1.5 kW2,900 r/min
CDL2-18136 m2 m³/h2.2 kW2,900 r/min
CDL2-22165 m2 m³/h2.2 kW2,900 r/min
CDL2-26198 m2 m³/h3.0 kW2,900 r/min
CDL3-29 m3 m³/h0.37 kW2,900 r/min
CDL3-314 m3 m³/h0.37 kW2,900 r/min
CDL3-419 m3 m³/h0.37 kW2,900 r/min
CDL3-523 m3 m³/h0.37 kW2,900 r/min
CDL3-628 m3 m³/h0.55 kW2,900 r/min
CDL3-732 m3 m³/h0.55 kW2,900 r/min
CDL3-837 m3 m³/h0.75 kW2,900 r/min
CDL3-942 m3 m³/h0.75 kW2,900 r/min
CDL3-1047 m3 m³/h0.75 kW2,900 r/min
CDL3-1151 m3 m³/h1.1 kW2,900 r/min
CDL3-1255 m3 m³/h1.1 kW2,900 r/min
CDL3-1360 m3 m³/h1.1 kW2,900 r/min
CDL3-1569 m3 m³/h1.1 kW2,900 r/min
CDL3-1779 m3 m³/h1.5 kW2,900 r/min
CDL3-1988 m3 m³/h1.5 kW2,900 r/min
CDL3-2198 m3 m³/h2.2 kW2,900 r/min
CDL3-23107 m3 m³/h2.2 kW2,900 r/min
CDL3-25116 m3 m³/h2.2 kW2,900 r/min
CDL3-27124 m3 m³/h2.2 kW2,900 r/min
CDL3-29133 m3 m³/h2.2 kW2,900 r/min
CDL3-31142 m3 m³/h3 kW2,900 r/min
CDL3-33151 m3 m³/h3 kW2,900 r/min
CDL3-36168 m3 m³/h3 kW2,900 r/min
CDL4-215 m4 m³/h0.37 kW2,900 r/min
CDL4-324 m4 m³/h0.55 kW2,900 r/min
CDL4-432 m4 m³/h0.75 kW2,900 r/min
CDL4-540 m4 m³/h1.1 kW2,900 r/min
CDL4-648 m4 m³/h1.1 kW2,900 r/min
CDL4-756 m4 m³/h1.5 kW2,900 r/min
CDL4-864 m4 m³/h1.5 kW2,900 r/min
CDL4-1081 m4 m³/h2.2 kW2,900 r/min
CDL4-1295 m4 m³/h2.2 kW2,900 r/min
CDL4-14112 m4 m³/h3 kW2,900 r/min
CDL4-16129 m4 m³/h3 kW2,900 r/min
CDL4-19153 m4 m³/h4 kW2,900 r/min
CDL4-22178 m4 m³/h4 kW2,900 r/min
CDL8-2/19 m8 m³/h0.75 kW2,900 r/min
CDL8-218 m8 m³/h0.75 kW2,900 r/min
CDL8-327 m8 m³/h1.1 kW2,900 r/min
CDL8-436 m8 m³/h1.5 kW2,900 r/min
CDL8-545 m8 m³/h2.2 kW2,900 r/min
CDL8-654 m8 m³/h2.2 kW2,900 r/min
CDL8-873 m8 m³/h3.0 kW2,900 r/min
CDL8-1092 m8 m³/h4.0 kW2,900 r/min
CDL8-12111 m8 m³/h4.0 kW2,900 r/min
CDL8-14130 m8 m³/h5.5 kW2,900 r/min
CDL8-16148 m8 m³/h5.5 kW2,900 r/min
CDL8-18167 m8 m³/h7.5 kW2,900 r/min
CDL8-20186 m8 m³/h7.5 kW2,900 r/min
CDL12-220 m12 m³/h1.5 kW2,900 r/min
CDL12-330 m12 m³/h2.2 kW2,900 r/min
CDL12-440 m12 m³/h3 kW2,900 r/min
CDL12-550 m12 m³/h3 kW2,900 r/min
CDL12-660 m12 m³/h4 kW2,900 r/min
CDL12-770 m12 m³/h5.5 kW2,900 r/min
CDL12-880 m12 m³/h5.5 kW2,900 r/min
CDL12-991 m12 m³/h5.5 kW2,900 r/min
CDL12-10101 m12 m³/h7.5 kW2,900 r/min
CDL12-12121 m12 m³/h7.5 kW2,900 r/min
CDL12-14141 m12 m³/h11 kW2,900 r/min
CDL12-16162 m12 m³/h11 kW2,900 r/min
CDL12-18183 m12 m³/h11 kW2,900 r/min
CDL16-222 m16 m³/h2.2 kW2,900 r/min
CDL16-334 m16 m³/h3.0 kW2,900 r/min
CDL16-446 m16 m³/h4.0 kW2,900 r/min
CDL16-558 m16 m³/h5.5 kW2,900 r/min
CDL16-670 m16 m³/h5.5 kW2,900 r/min
CDL16-782 m16 m³/h7.5 kW2,900 r/min
CDL16-894 m16 m³/h7.5 kW2,900 r/min
CDL16-10118 m16 m³/h11 kW2,900 r/min
CDL16-12141 m16 m³/h11 kW2,900 r/min
CDL16-14166 m16 m³/h15 kW2,900 r/min
CDL16-16189 m16 m³/h15 kW2,900 r/min
CDL20-110 m20 m³/h1.1 kW2,900 r/min
CDL20-223 m20 m³/h2.2 kW2,900 r/min
CDL20-335 m20 m³/h4.0 kW2,900 r/min
CDL20-447 m20 m³/h5.5 kW2,900 r/min
CDL20-558 m20 m³/h5.5 kW2,900 r/min
CDL20-670 m20 m³/h7.5 kW2,900 r/min
CDL20-782 m20 m³/h7.5 kW2,900 r/min
CDL20-894 m20 m³/h11 kW2,900 r/min
CDL20-10118 m20 m³/h11 kW2,900 r/min
CDL20-12142 m20 m³/h15 kW2,900 r/min
CDL20-14166 m20 m³/h15 kW2,900 r/min
CDL20-17202 m20 m³/h18.5 kW2,900 r/min
CDL32-10-19 m32 m³/h1.5 kW2,900 r/min
CDL32-1013 m32 m³/h2.2 kW2,900 r/min
CDL32-20-220 m32 m³/h3.0 kW2,900 r/min
CDL32-2027 m32 m³/h4.0 kW2,900 r/min
CDL32-30-233 m32 m³/h5.5 kW2,900 r/min
CDL32-3040 m32 m³/h5.5 kW2,900 r/min
CDL32-40-246 m32 m³/h7.5 kW2,900 r/min
CDL32-4053 m32 m³/h7.5 kW2,900 r/min
CDL32-50-260 m32 m³/h11 kW2,900 r/min
CDL32-5067 m32 m³/h11 kW2,900 r/min
CDL32-60-274 m32 m³/h11 kW2,900 r/min
CDL32-6081 m32 m³/h11 kW2,900 r/min
CDL32-70-288 m32 m³/h15 kW2,900 r/min
CDL32-7095 m32 m³/h15 kW2,900 r/min
CDL32-80-2102 m32 m³/h15 kW2,900 r/min
CDL32-80109 m32 m³/h15 kW2,900 r/min
CDL32-90-2117 m32 m³/h18.5 kW2,900 r/min
CDL32-90124 m32 m³/h18.5 kW2,900 r/min
CDL32-100-2131 m32 m³/h18.5 kW2,900 r/min
CDL32-100138 m32 m³/h18.5 kW2,900 r/min
CDL32-110-2146 m32 m³/h22 kW2,900 r/min
CDL32-110153 m32 m³/h22 kW2,900 r/min
CDL32-120-2160 m32 m³/h22 kW2,900 r/min
CDL32-120167 m32 m³/h22 kW2,900 r/min
CDL32-130-2174 m32 m³/h30 kW2,900 r/min
CDL32-130181 m32 m³/h30 kW2,900 r/min
CDL32-140-2189 m32 m³/h30 kW2,900 r/min
CDL32-140196 m32 m³/h30 kW2,900 r/min
CDL42-10-116 m42 m³/h3.0 kW2,900 r/min
CDL42-1020 m42 m³/h4.0 kW2,900 r/min
CDL42-20-232 m42 m³/h5.5 kW2,900 r/min
CDL42-2041 m42 m³/h7.5 kW2,900 r/min
CDL42-30-252 m42 m³/h11 kW2,900 r/min
CDL42-3061 m42 m³/h11 kW2,900 r/min
CDL42-40-273 m42 m³/h15 kW2,900 r/min
CDL42-4081 m42 m³/h15 kW2,900 r/min
CDL42-50-293 m42 m³/h18.5 kW2,900 r/min
CDL42-50101 m42 m³/h18.5 kW2,900 r/min
CDL42-60-2113 m42 m³/h22 kW2,900 r/min
CDL42-60122 m42 m³/h22 kW2,900 r/min
CDL42-70-2134 m42 m³/h30 kW2,900 r/min
CDL42-70142 m42 m³/h30 kW2,900 r/min
CDL42-80-2154 m42 m³/h30 kW2,900 r/min
CDL42-80162 m42 m³/h30 kW2,900 r/min
CDL42-90-2174 m42 m³/h30 kW2,900 r/min
CDL42-90183 m42 m³/h37 kW2,900 r/min
CDL42-100-2194 m42 m³/h37 kW2,900 r/min
CDL42-100203 m42 m³/h37 kW2,900 r/min
CDL42-110-2217 m42 m³/h45 kW2,900 r/min
CDL42-110225 m42 m³/h45 kW2,900 r/min
CDL42-120-2238 m42 m³/h45 kW2,900 r/min
CDL42-120247 m42 m³/h45 kW2,900 r/min
CDL42-130-2259 m42 m³/h45 kW2,900 r/min
CDL65-10-113 m65 m³/h4.0 kW2,900 r/min
CDL65-1020 m65 m³/h5.5 kW2,900 r/min
CDL65-20-226 m65 m³/h7.5 kW2,900 r/min
CDL65-20-133 m65 m³/h11 kW2,900 r/min
CDL65-2040 m65 m³/h11 kW2,900 r/min
CDL65-30-246 m65 m³/h15 kW2,900 r/min
CDL65-30-153 m65 m³/h15 kW2,900 r/min
CDL65-3060 m65 m³/h18.5 kW2,900 r/min
CDL65-40-266 m65 m³/h18.5 kW2,900 r/min
CDL65-40-173 m65 m³/h22 kW2,900 r/min
CDL65-4080 m65 m³/h22 kW2,900 r/min
CDL65-50-288 m65 m³/h30 kW2,900 r/min
CDL65-50-195 m65 m³/h30 kW2,900 r/min
CDL65-50102 m65 m³/h30 kW2,900 r/min
CDL65-60-2110 m65 m³/h30 kW2,900 r/min
CDL65-60-1117 m65 m³/h37 kW2,900 r/min
CDL65-60124 m65 m³/h37 kW2,900 r/min
CDL65-70-2132 m65 m³/h37 kW2,900 r/min
CDL65-70-1139 m65 m³/h37 kW2,900 r/min
CDL65-70146 m65 m³/h45 kW2,900 r/min
CDL65-80-2154 m65 m³/h45 kW2,900 r/min
CDL65-80-1161 m65 m³/h45 kW2,900 r/min
CDL85-10-114 m85 m³/h5.5 kW2,900 r/min
CDL85-1020 m85 m³/h7.5 kW2,900 r/min
CDL85-20-230 m85 m³/h11 kW2,900 r/min
CDL85-2041 m85 m³/h15 kW2,900 r/min
CDL85-30-252 m85 m³/h18.5 kW2,900 r/min
CDL85-3064 m85 m³/h22 kW2,900 r/min
CDL85-40-275 m85 m³/h30 kW2,900 r/min
CDL85-4086 m85 m³/h30 kW2,900 r/min
CDL85-50-298 m85 m³/h37 kW2,900 r/min
CDL85-50110 m85 m³/h37 kW2,900 r/min
CDL85-60-2122 m85 m³/h45 kW2,900 r/min
CDL85-60134 m85 m³/h45 kW2,900 r/min
CDL120-1018.5 m120 m³/h11 kW2,950 r/min
CDL120-20-134.5 m120 m³/h18.5 kW2,950 r/min
CDL120-2040 m120 m³/h22 kW2,950 r/min
CDL120-3061 m120 m³/h30 kW2,950 r/min
CDL120-40-176 m120 m³/h37 kW2,950 r/min
CDL120-50-197 m120 m³/h45 kW2,950 r/min
CDL120-60-1118 m120 m³/h55 kW2,950 r/min
CDL120-70145 m120 m³/h75 kW2,950 r/min
CDL150-10-112.5 m150 m³/h11 kW2,950 r/min
CDL150-1018.5 m150 m³/h15 kW2,950 r/min
CDL150-20-135 m150 m³/h22 kW2,950 r/min
CDL150-30-249 m150 m³/h30 kW2,950 r/min
CDL150-3063 m150 m³/h37 kW2,950 r/min
CDL150-40-177 m150 m³/h45 kW2,950 r/min
CDL150-50-292 m150 m³/h55 kW2,950 r/min
CDL150-60130 m150 m³/h75 kW2,950 r/min

These are supplied model-reference values, not guaranteed combined operating points. Zhejiang Jiabo Fluid Equipment Co., Ltd. will confirm the exact curve, connection size, allowable inlet pressure, wetted materials, mechanical seal, voltage and installation conditions before ordering.

Selection information

What we need to size it.

Reference specification sheet

Parameters for an international quotation.

These values describe common enquiry formats in Europe and North America—not confirmed ratings for every JIABO model. The quotation and motor nameplate control the final specification.

Primary duty dataRequired flow (m³/h or US gpm) and total dynamic head (m or ft); also state inlet pressure and required discharge pressure.
Typical liquidClean water or compatible low-viscosity process liquid; provide temperature, chemistry and solids information.
Electrical referenceEurope: 1 × 220–240 V, 50 Hz (smaller duties) or 3 × 380–415 V, 50 Hz. North America: commonly 3 × 230/460 V, 60 Hz. Confirm the exact motor nameplate before ordering.
Construction to specifyVertical or horizontal arrangement, stainless-steel grade, seal materials, inlet/outlet connection and motor enclosure.
Documents to requestExact model curve, efficiency, motor current, dimensions, connection rating and approved materials list.

Regional electrical examples are reference conventions supported by published manufacturer data: Grundfos 230/400 V, 50 Hz data ↗ and Franklin Electric 230/460 V, 60 Hz data ↗. Availability must be confirmed for the selected JIABO model.

Technical confirmation

Ask for the current model table and curve.

Use the published table as a shortlist only. Send your operating point so JIABO can confirm the exact model, current performance curve, motor supply and materials.

Email JIABO
