JIABO · Chemical pump range

Corrosion-resistant chemical pumps for process transfer.

FSB fluoroplastic-lined centrifugal pumps are intended for compatible corrosive-liquid duties. Final selection depends on the exact chemical, concentration, temperature, required flow and head, seal arrangement, and wetted-material compatibility.

Explore the series Request current data →

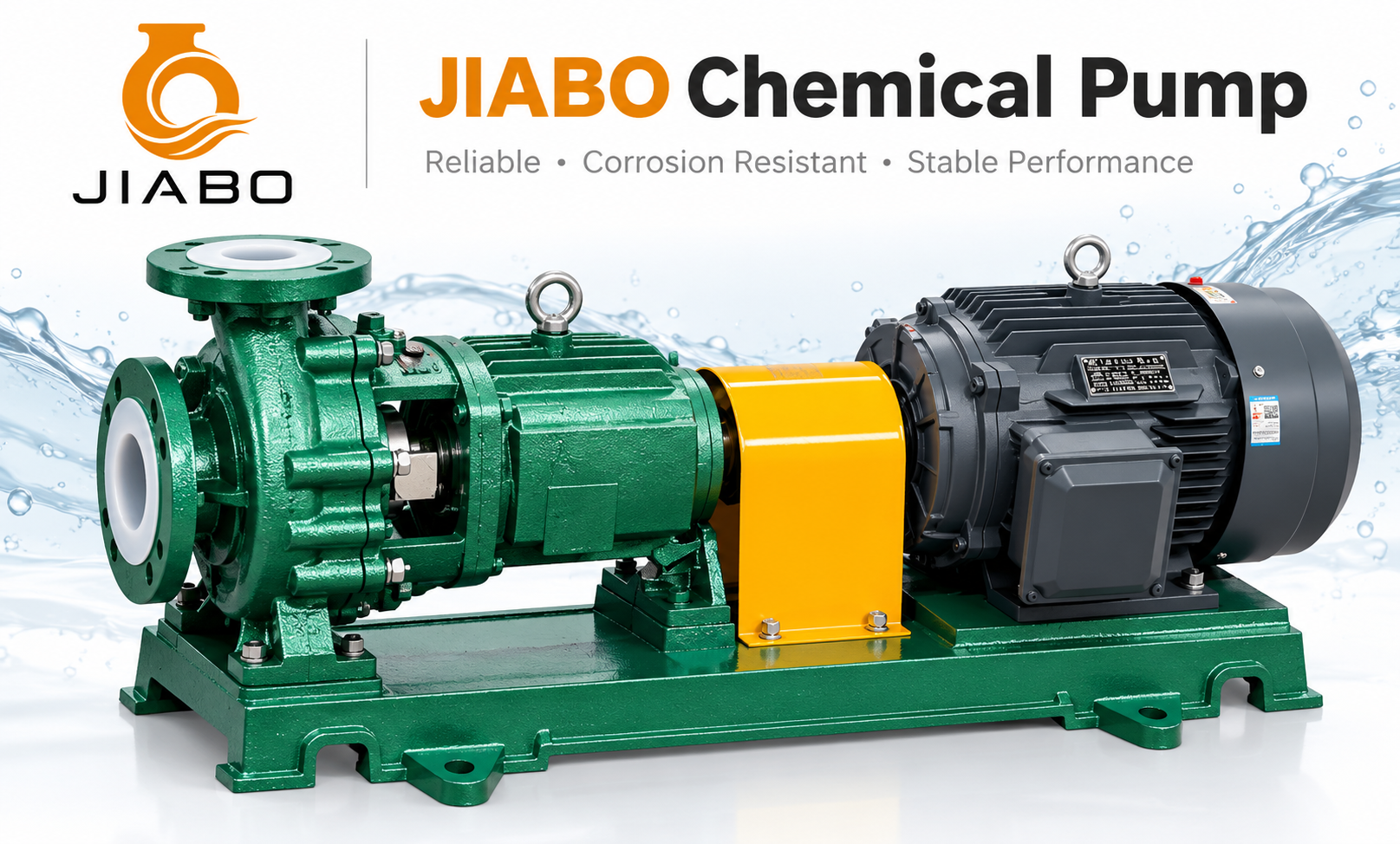

JIABO FSB corrosion-resistant chemical centrifugal pump

Choose a series

Chemical pumps range.

The table below is the supplied FSB range. Values are nominal selection data; confirm the current curve, dimensions and chemical compatibility before ordering.

FSB

FSB Corrosion-Resistant Chemical Pump

FSB fluoroplastic-lined centrifugal pumps for compatible corrosive chemical transfer. Select materials only after checking the liquid concentration, temperature and operating duty.

Explore series →

Catalog-backed model data

Click a range to compare models.

Values are transcribed from the supplied manufacturer catalogs. Confirm the current curve, materials, and operating limits before ordering.

FSB chemical pump specifications

Nominal 2,900 r/min models from 25 mm to 100 mm inlet sizes. A listed maximum is not a guaranteed operating point; select from the current performance curve.

Model	Power	Flow	Head	Inlet	Outlet	Speed
25FSB-10	1.5 kW	1.5 m³/h	10 m	25 mm	20 mm	2,900 r/min
25FSB-18	2.2 kW	3.6 m³/h	18 m	25 mm	20 mm	2,900 r/min
40FSB-15	3 kW	5 m³/h	15 m	40 mm	32 mm	2,900 r/min
40FSB-20	4 kW	10 m³/h	20 m	40 mm	32 mm	2,900 r/min
40FSB-30	4 kW	10 m³/h	30 m	40 mm	32 mm	2,900 r/min
40FSB-40	5.5 kW	10 m³/h	40 m	40 mm	32 mm	2,900 r/min
40FSB-50	7.5 kW	10 m³/h	50 m	40 mm	32 mm	2,900 r/min
50FSB-20	4 kW	15 m³/h	20 m	50 mm	40 mm	2,900 r/min
50FSB-25	4 kW	15 m³/h	25 m	50 mm	40 mm	2,900 r/min
50FSB-30	4 kW	15 m³/h	30 m	50 mm	40 mm	2,900 r/min
50FSB-40	5.5-7.5 kW	15 m³/h	40 m	50 mm	32 mm	2,900 r/min
50FSB-50	7.5-11 kW	15 m³/h	50 m	50 mm	32 mm	2,900 r/min
50FSB-63	11 kW	15 m³/h	63 m	50 mm	32 mm	2,900 r/min
65FSB-32	5.5 kW	29 m³/h	32 m	65 mm	50 mm	2,900 r/min
65FSB-40	11 kW	25 m³/h	40 m	65 mm	40 mm	2,900 r/min
65FSB-50	15 kW	25 m³/h	50 m	65 mm	40 mm	2,900 r/min
65FSB-64	15-18.5 kW	25 m³/h	64 m	65 mm	50 mm	2,900 r/min
80FSB-20	5.5 kW	50 m³/h	20 m	80 mm	65 mm	2,900 r/min
80FSB-30	7.5 kW	50 m³/h	30 m	80 mm	65 mm	2,900 r/min
80FSB-34	11 kW	50 m³/h	34 m	80 mm	65 mm	2,900 r/min
80FSB-40	11-15 kW	50 m³/h	40 m	80 mm	50 mm	2,900 r/min
80FSB-50	15-18.5 kW	50 m³/h	50 m	80 mm	50 mm	2,900 r/min
80FSB-55	15-18.5 kW	50 m³/h	55 m	80 mm	50 mm	2,900 r/min
80FSB-80	30-37 kW	50 m³/h	80 m	80 mm	50 mm	2,900 r/min
100FSB-32	18.5-22 kW	100 m³/h	32 m	100 mm	80 mm	2,900 r/min
100FSB-40	18.5-22 kW	100 m³/h	40 m	100 mm	80 mm	2,900 r/min
100FSB-50	22-30 kW	100 m³/h	50 m	100 mm	65 mm	2,900 r/min

Range comparison

Which arrangement should you investigate?

These distinctions help narrow the inquiry. They are not a substitute for an exact model curve or materials list.

Series / arrangement	What distinguishes it	Confirm before selection
FSB chemical pump	Fluoroplastic-lined centrifugal arrangement for compatible corrosive-liquid transfer.	Chemical composition, concentration, temperature, density, materials, seal, duty point and motor.

Supplied product photos

See the equipment.

Photos show configurations within this range. They do not establish a model’s flow, head, pressure or materials; check the current datasheet before ordering.

FSB chemical pump →

Typical applications
